Azure Firewall Configuration and Testing

Student Name: Daniel Wanjama Student ID: ADC-CSS02-25012

Introduction

This lab explores the deployment and configuration of Azure Firewall using the Learn on Demand portal. Azure Firewall provides centralized, scalable, and stateful network security for cloud environments. The lab covers key tasks including firewall deployment, routing, rule creation, DNS setup, and traffic validation.

Objectives

  • Deploy Azure Firewall using an ARM template
  • Configure User Defined Routes (UDRs)
  • Create application and network rules
  • Set up DNS server integration
  • Test firewall functionality

Prerequisites

  • Skillable lab access
  • Azure subscription with admin privileges
  • Familiarity with virtual networks and routing

Walkthrough

Task 1: Deploy Lab Environment

  • Used ARM template to provision virtual network, subnets, and resources
  • Verified deployment via Azure Portal

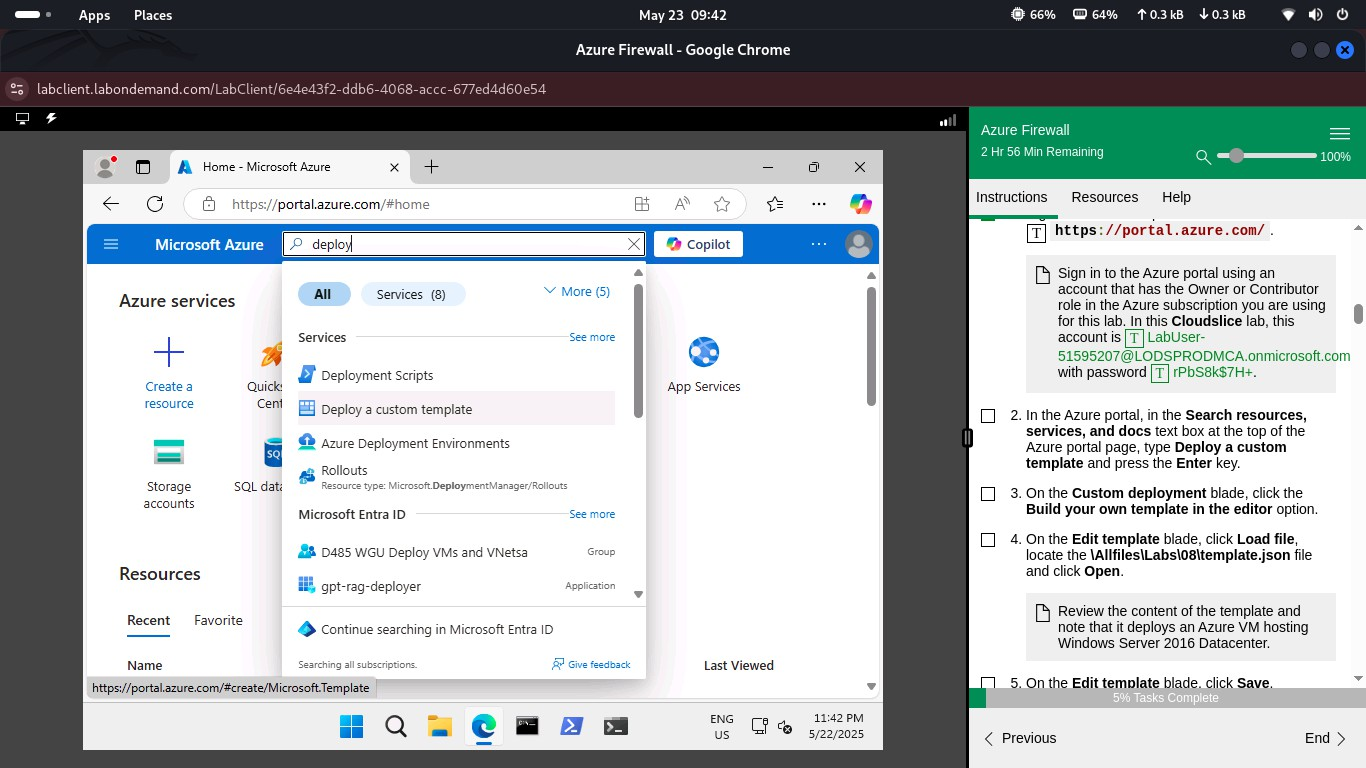

ARM template showing successful deployment of virtual network, subnets, and firewall resources ARM template deployment overview

Task 2: Deploy Azure Firewall

  • Navigated to Firewall Manager
  • Created Azure Firewall in the designated subnet
  • Verified firewall provisioning status

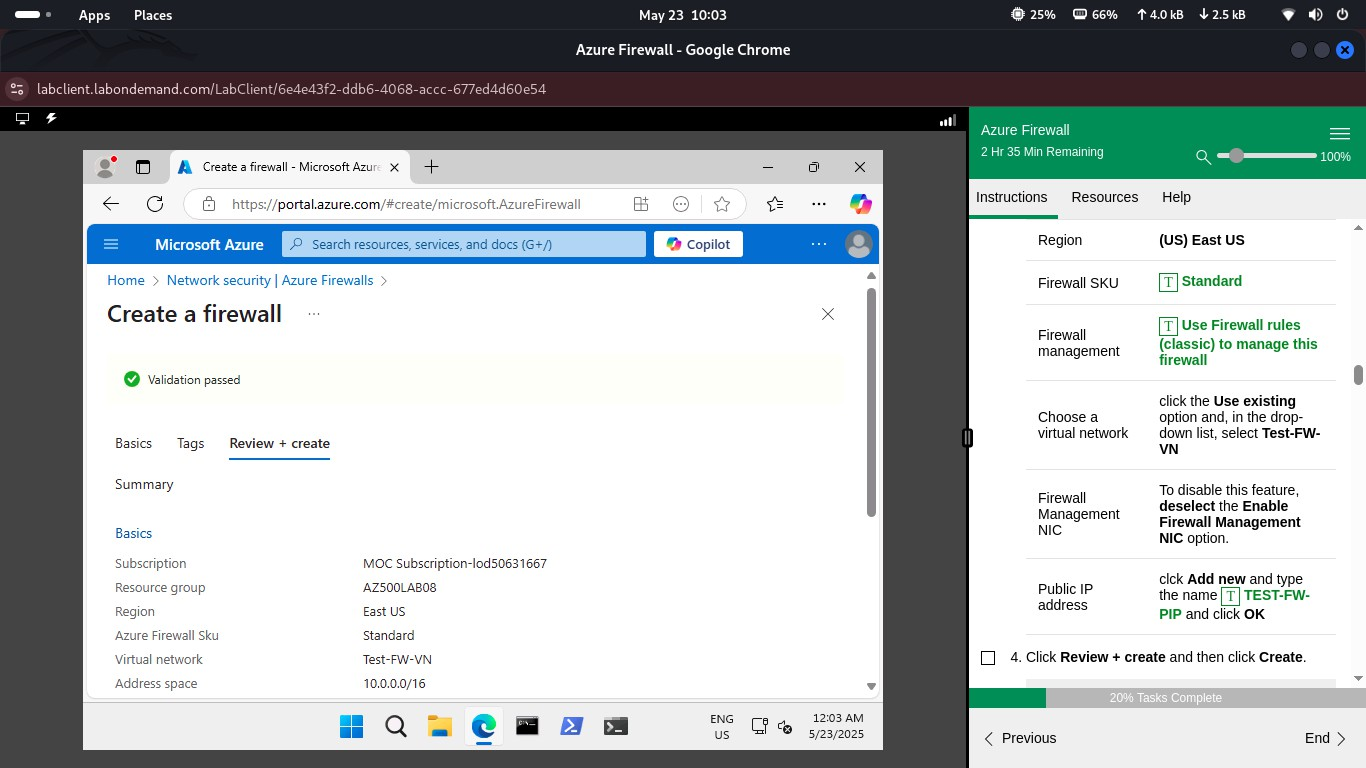

Azure Firewall creation interface showing successful provisioning and configuration Azure Firewall creation

Task 3: Configure Default Route (UDR)

  • Created User Defined Route to redirect traffic through firewall
  • Associated route table with subnet

User Defined Route configuration showing traffic redirection to Azure Firewall UDR configuration

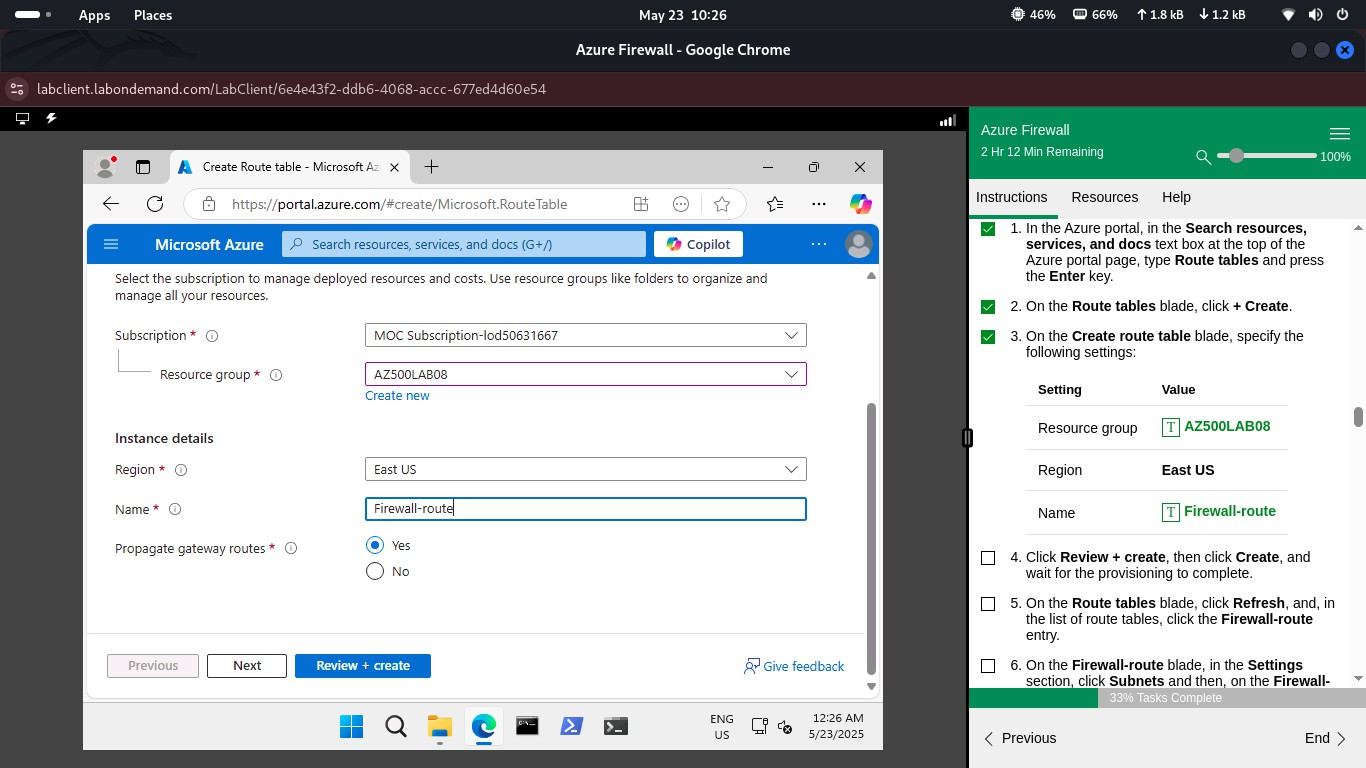

Route table association demonstrating subnet-level routing policies Route table association

Task 4: Create Application Rules

  • Defined Layer 7 rules for FQDN-based access
  • Allowed traffic to *.microsoft.com and *.github.com

Application rule configuration showing FQDN-based filtering for allowed domains Application rule configuration

Task 5: Create Network Rules

  • Configured Layer 3/4 rules for IP and port-based access
  • Allowed TCP traffic on port 443 to specific IP ranges

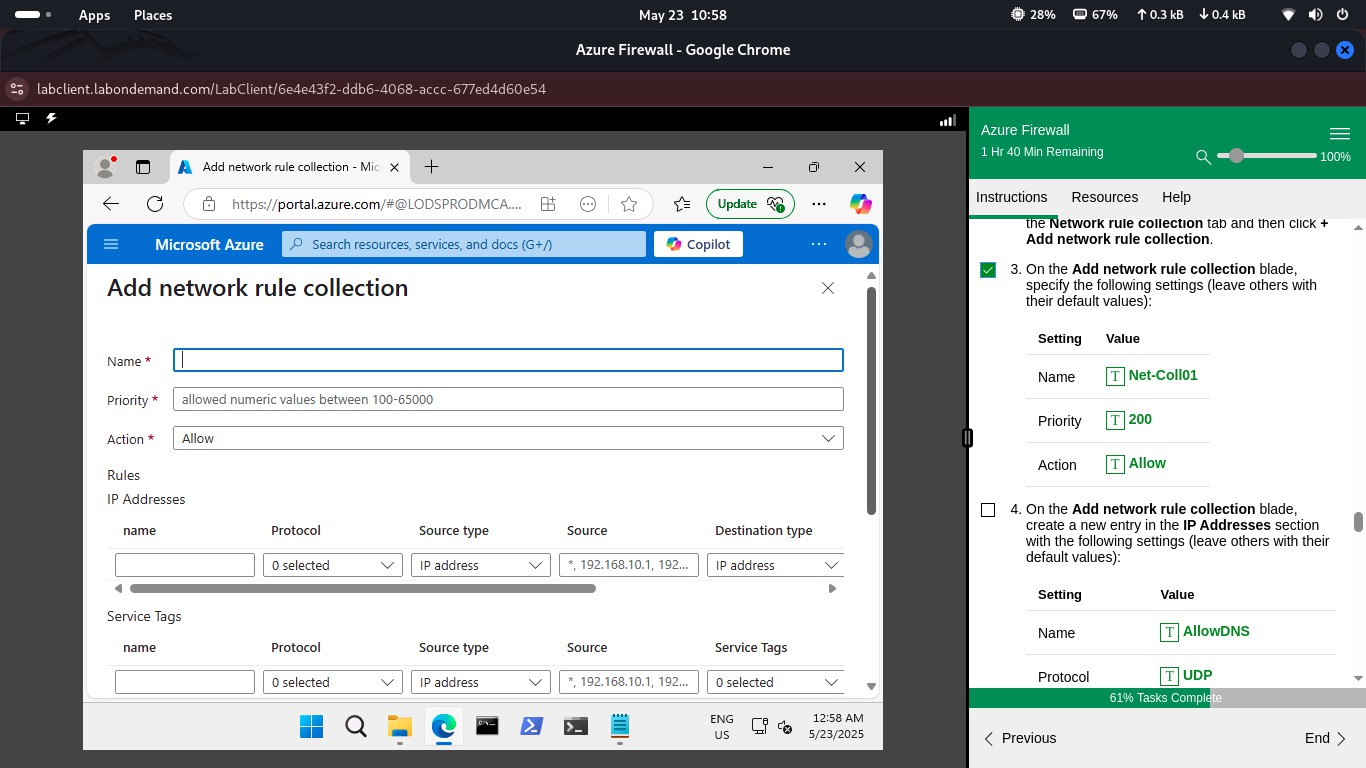

Network rule setup showing TCP port 443 filtering for specific IP ranges Network rule setup

Task 6: Configure DNS Server

  • Enabled DNS proxy on Azure Firewall
  • Verified DNS resolution for outbound traffic

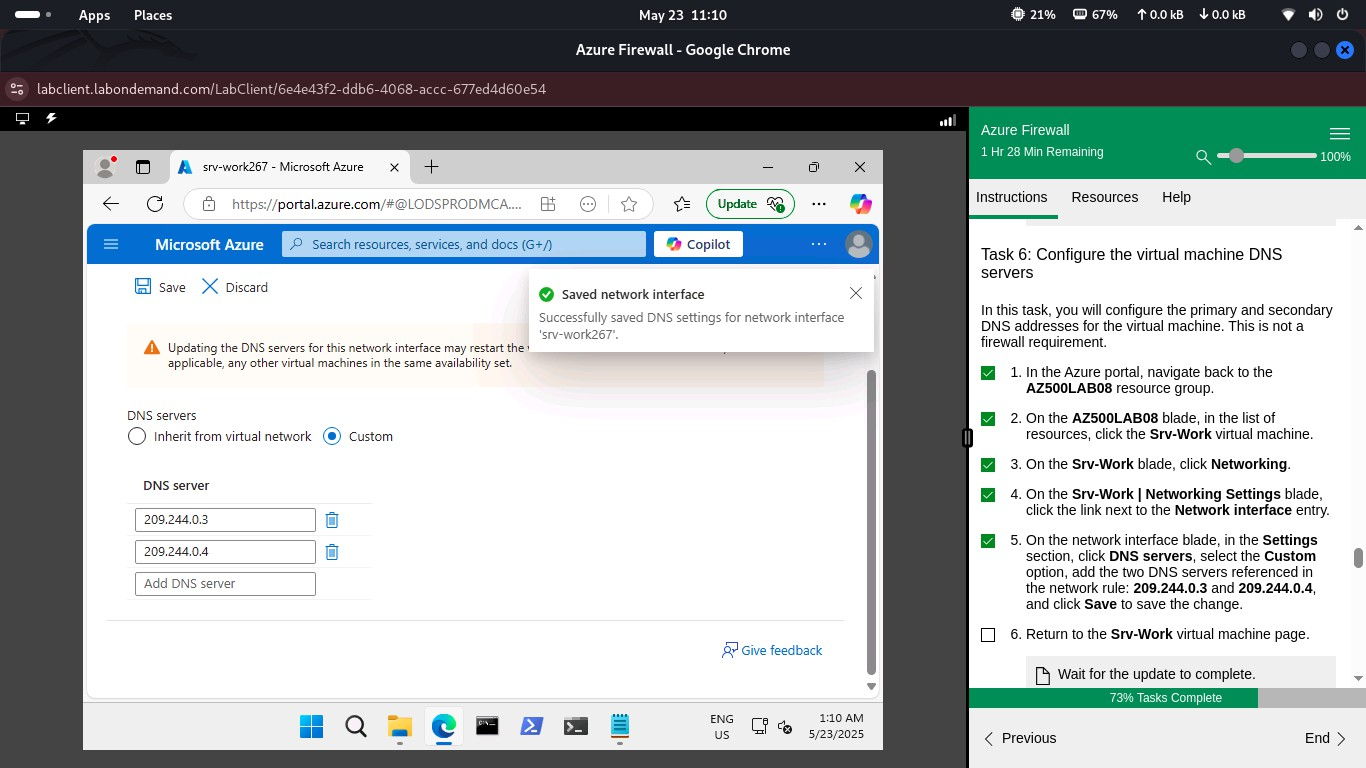

DNS proxy configuration interface showing enabled DNS proxy settings DNS proxy configuration

Task 7: Test Firewall Functionality

  • Validated access to allowed domains
  • Confirmed blocked traffic for unauthorized destinations
  • Used VM browser and command-line tools for testing

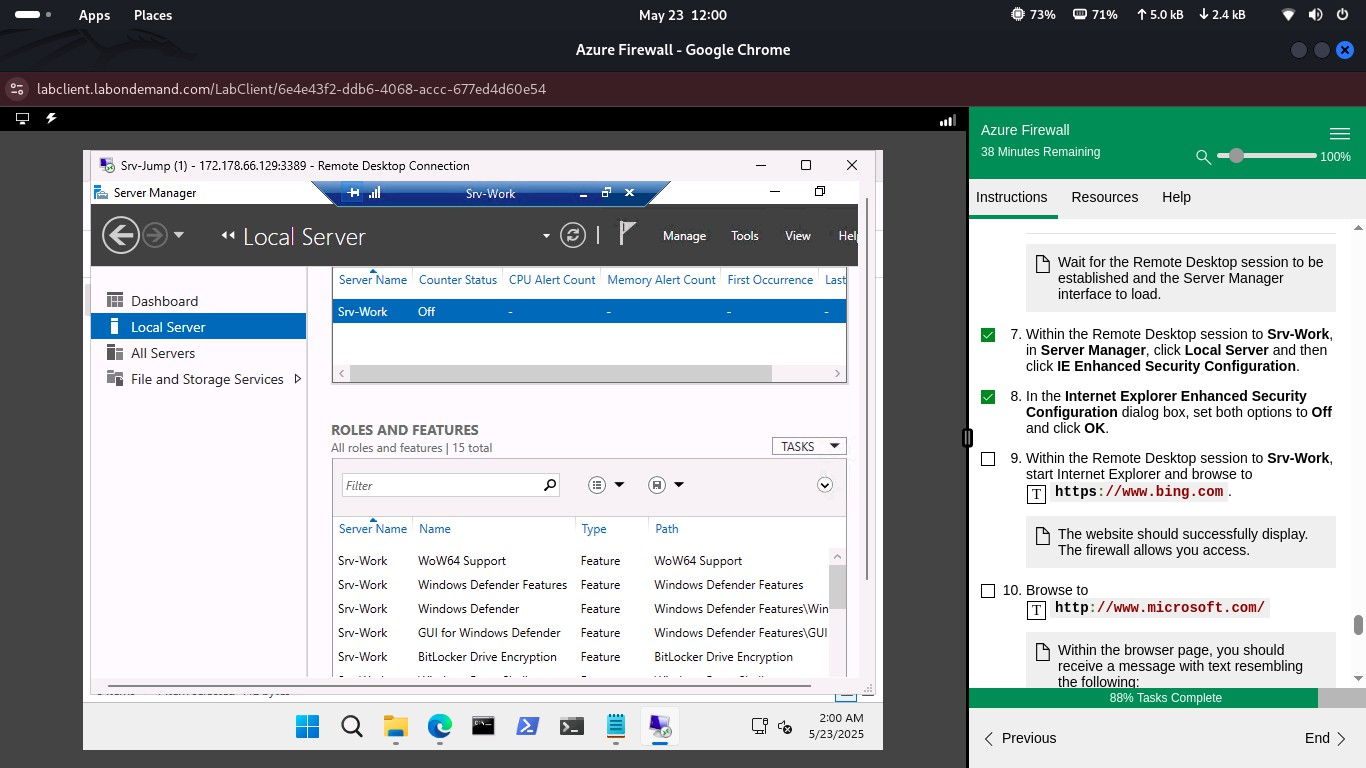

Successful access test showing allowed traffic to whitelisted domains Successful access test

Blocked traffic confirmation demonstrating firewall blocking unauthorized access Blocked traffic confirmation

Summary

This lab successfully demonstrated Azure Firewall deployment, configuration, and testing. All application and network rules were properly configured and validated, demonstrating centralized security enforcement.
